Details
KBsphere Tech. has independently developed a new generation of polymer spacer microspheres and silica spacer microspheres. Featuring an extremely narrow particle size distribution, these microspheres enable precise control of cell gap thickness without damaging the substrate, while delivering superior clarity. In addition, KBsphere Tech. provides customized spacer microspheres tailored to customers’ specific requirements.
Characterization
highly uniform particle size(CV<3%)
Smooth surface, high purity
Good heat resistance
High mechanical strength
Good dispersion,no agglomeration
Highly uniform particle size

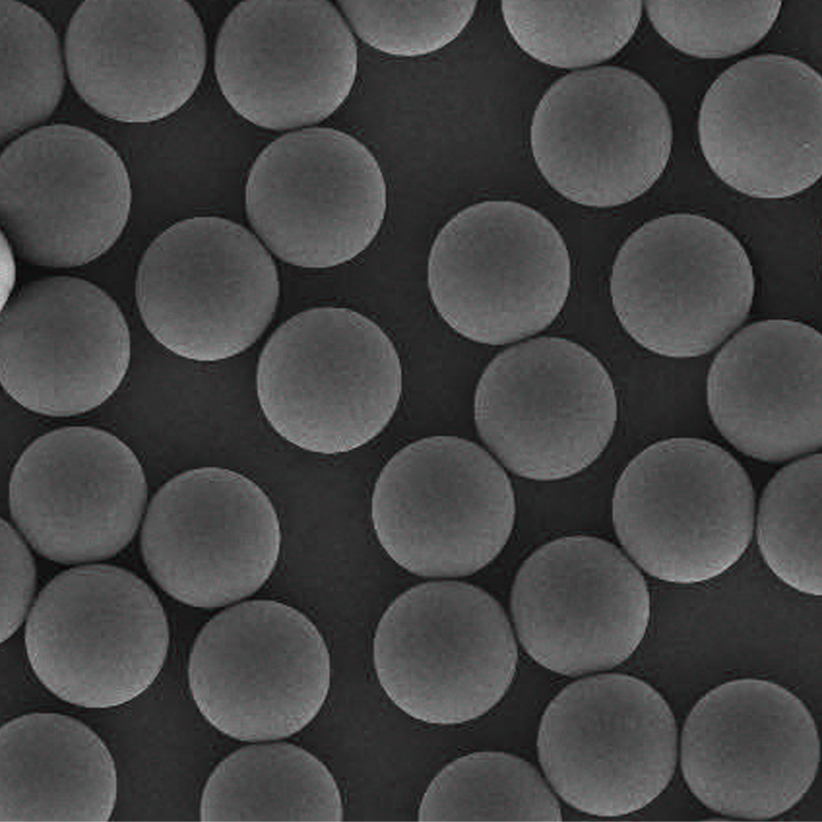

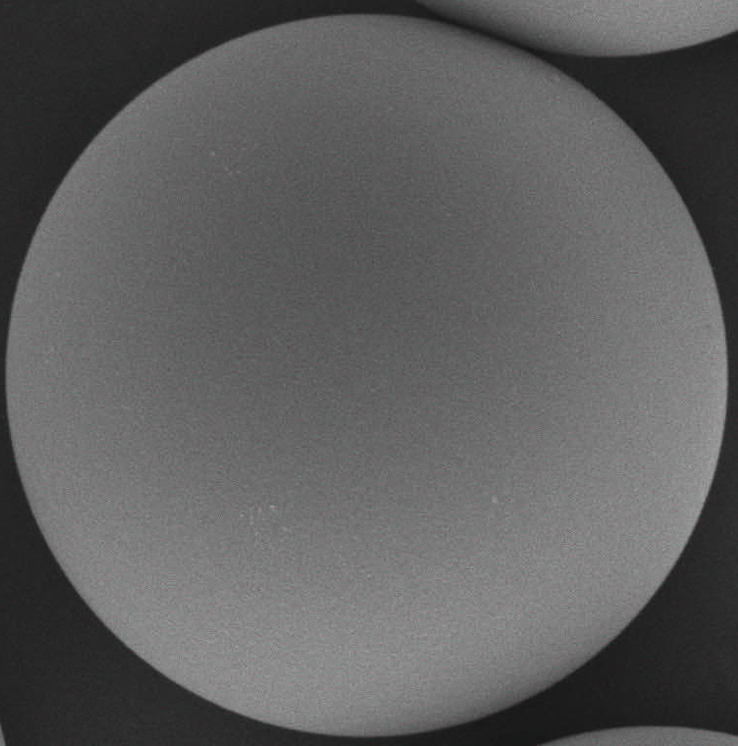

Fig. 1: SEM of Spacer

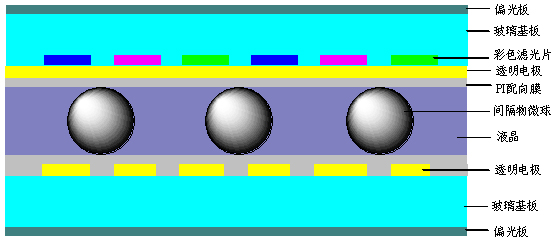

Fig. 2: Application Diagram of Spacer
Low ion content:
|
Detection substance |
Result |
Method |
|
Cl |
≤ 1 ppm |
ion chromatography |
|
Na |
≤ 1 ppm |
ICP spectrograph |
|
Fe |
≤ 1 ppm |
|
|
K |
≤ 1 ppm |
|
|
Ca |
≤ 1 ppm |
Technical Parameters：
|
Test items |
KBsphere® Spacer-PS |
KBsphere® Spacer-Sil |
|
refractive index |
1.59 |
1.46 |
|
CV % |
< 3% |
< 3% |
|
10% Modulus of Elasticity, kgf/mm2 |
400-800 |
> 4500 |
|
pyrolysis temperatur（oC） |
350 |
No pyrolysis |
|
specific gravity（g/cm3） |
1.08 |
2.1 |
Products：
|
Products |
Particle size（μm） |
|
KBsphere® Spacer PS |
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 18, 20, 22, 25, 30, 40, 50, 60, 80, 100, 110, 130, 150, 180, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 1000 |
|
KBsphere® Spacer Sil |
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 18, 20, 22, 25, 30, 40, 50, 60, 80, 100 |
